Burglar Bars
Cottage Pane Burglar Bars
10mm round vertical bars on 19mm steel horizontals, every bar epoxied 50mm into the wall. A classic pane pattern that holds far better than it looks.
Cottage pane burglar bars are steel bars set in a pane pattern, with 10mm round vertical bars running between 19mm steel horizontals, so a window keeps the divided, traditional look it was built with. Every bar is set 50mm into the wall on all sides and locked in with epoxy, which makes them considerably harder to get through than ordinary burglar bars.
The epoxy is what sets these apart. Most burglar bars are held by the depth of their fixing alone, so drilling out or levering that fixing frees the bar. Here each bar goes 50mm into the wall and is then chemically locked into the hole, so the bar and the masonry behave as one piece. There is no mechanical fixing to work loose, because there is no mechanical fixing to attack.
Anchoring on all sides counts as much as the depth. The bars go into the wall top, bottom, and both sides, not only at the head and sill. That leaves no free edge to lever against, and no run of bar that can be sprung out of the opening while the rest stays put.
This is the traditional choice on looks. The pane pattern suits cottage-pane and Georgian windows, older houses, and anywhere a plain horizontal run would look wrong against the architecture. The finish is rust-proofed and powder-coated, and can be matched to your property’s colour scheme, so the bars follow the frames instead of fighting them.
- Round vertical bars
- 10mm
- Epoxied into the wall
- 50mm
- Guarantee on the range
- 18 months
Benefits
-
Locked in with epoxy
Every bar is set 50mm into the wall and then locked in with epoxy. There is no mechanical fitting to drill out, because the bar is chemically bonded into the masonry, and that has proven a very strong way to fix a bar.
-
Anchored on all sides
The bars go into the wall top, bottom, and both sides, not just at the head and sill. With no free edge, there is nothing to lever against and no run that can be sprung out while the rest holds.
-
19mm and 10mm steel
19mm steel horizontal bars carry the frame of the pattern, and 10mm round vertical steel bars fill it. The round verticals are what give cottage pane its period look rather than a caged one.
-
Maintains aesthetics
The pane pattern suits cottage-pane and Georgian windows and older architecture, where a plain horizontal run would read as an afterthought bolted across the glass.
-
Rust-proofed and powder-coated
The bars are rust-proofed beneath a powder-coated finish that adds longevity and can be matched to your property’s colour scheme.
-
Payment terms available
Finance runs over up to 24 months through FeverTree, so a whole house of windows need not be done one at a time.
Models and specifications
Custom-made to the opening. What changes from job to job is the size, the pane layout, and the colour.
| Specification | Cottage Pane Burglar Bars |
|---|---|
| Horizontal bars | 19mm steel |
| Vertical bars | 10mm round steel |
| Fixing | Set 50mm into the wall on all sides |
| Fixing method | Bars locked into the wall with epoxy |
| Rust protection | Rust-proofed |
| Finish | Powder-coated, and can be colour matched to existing frames or bars |
| Sizing | Custom-made to fit any window size |
| Guarantee | 18 months |
Cottage Pane Burglar Bars
- Horizontal bars
- 19mm steel
- Vertical bars
- 10mm round steel
- Fixing
- Set 50mm into the wall on all sides
- Fixing method
- Bars locked into the wall with epoxy
- Rust protection
- Rust-proofed
- Finish
- Powder-coated, and can be colour matched to existing frames or bars
- Sizing
- Custom-made to fit any window size
- Guarantee
- 18 months
Fixed and swing-away units are both available: swing-away where a window doubles as an escape route, or where you need the opening clear for ventilation. Pane layout, bar spacing, and maximum spans are confirmed at the free on-site assessment.
Gallery

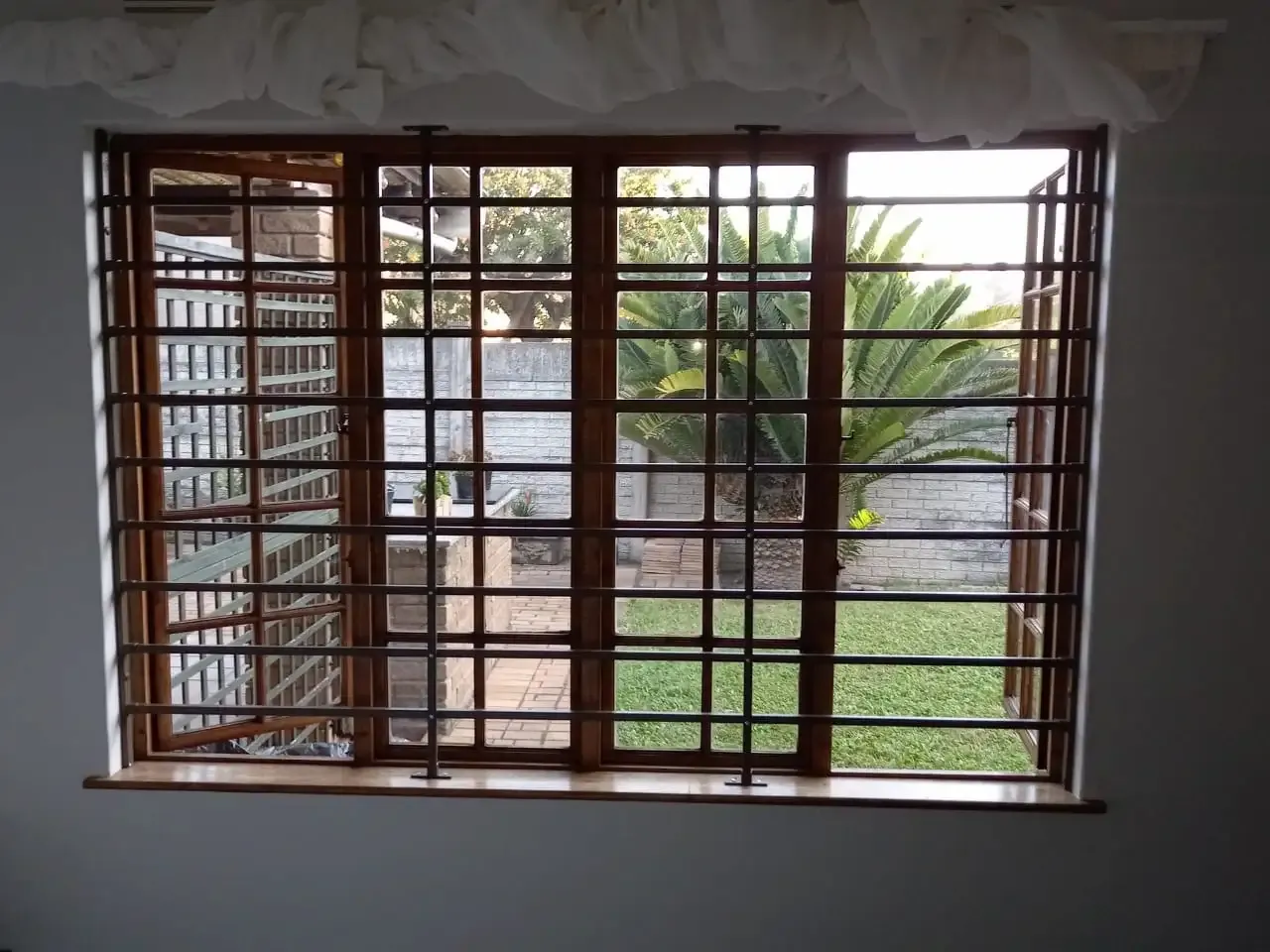

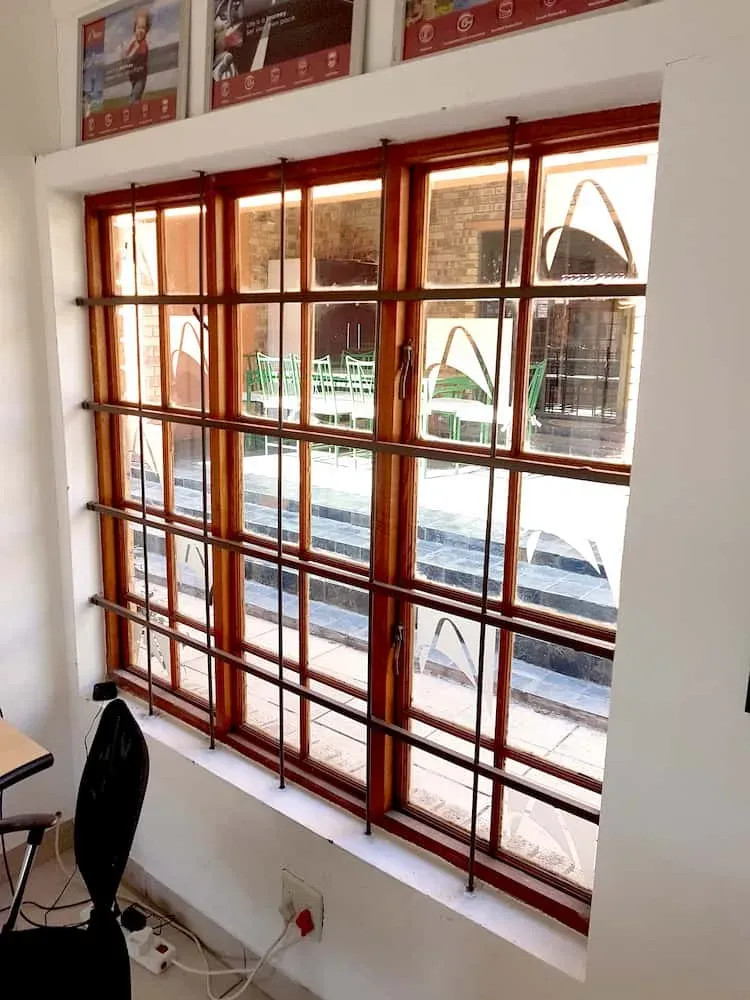

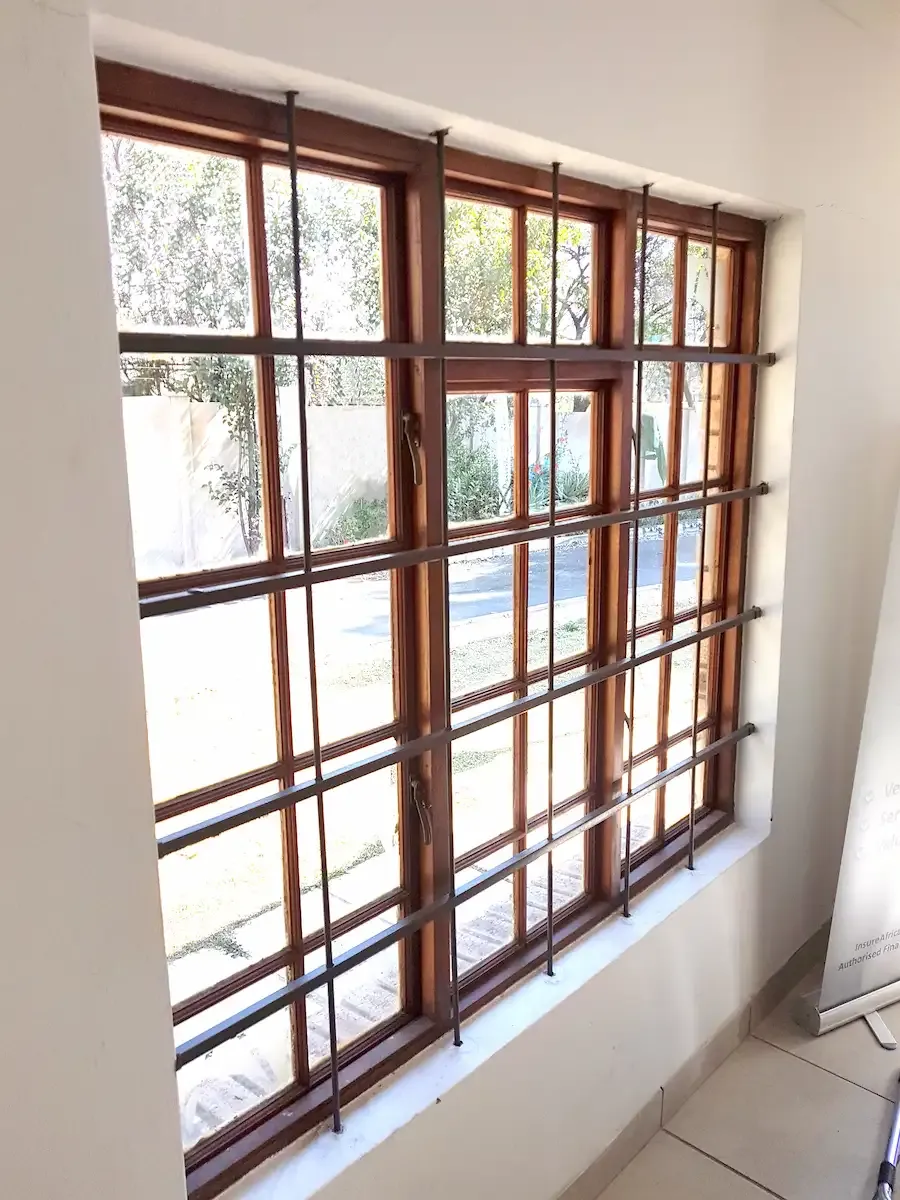

Cottage pane bars fitted to period and modern windows.
Colours
The standard DEFENDoor® powder-coat range, with colour matching to your property’s scheme available on request.
- Silver
- Chocolate Brown
- White
- Bronze
- Anthracite Grey
- Black
Custom colours available on request.
Colours shown here are a guide. Powder coating looks different in daylight than on a screen, so ask for a physical sample before you decide.
- Durable
- Timeless
- Beautifully finished
- Built to protect
Frequently asked questions
What makes cottage pane bars stronger than ordinary burglar bars?
What are cottage pane bars made of?
Will they suit a modern window?
Can I still open the window, or get out in an emergency?
Are they made to fit my windows?
How do I maintain them?
How long is the guarantee on cottage pane bars?
Can I pay burglar bars off over time?
