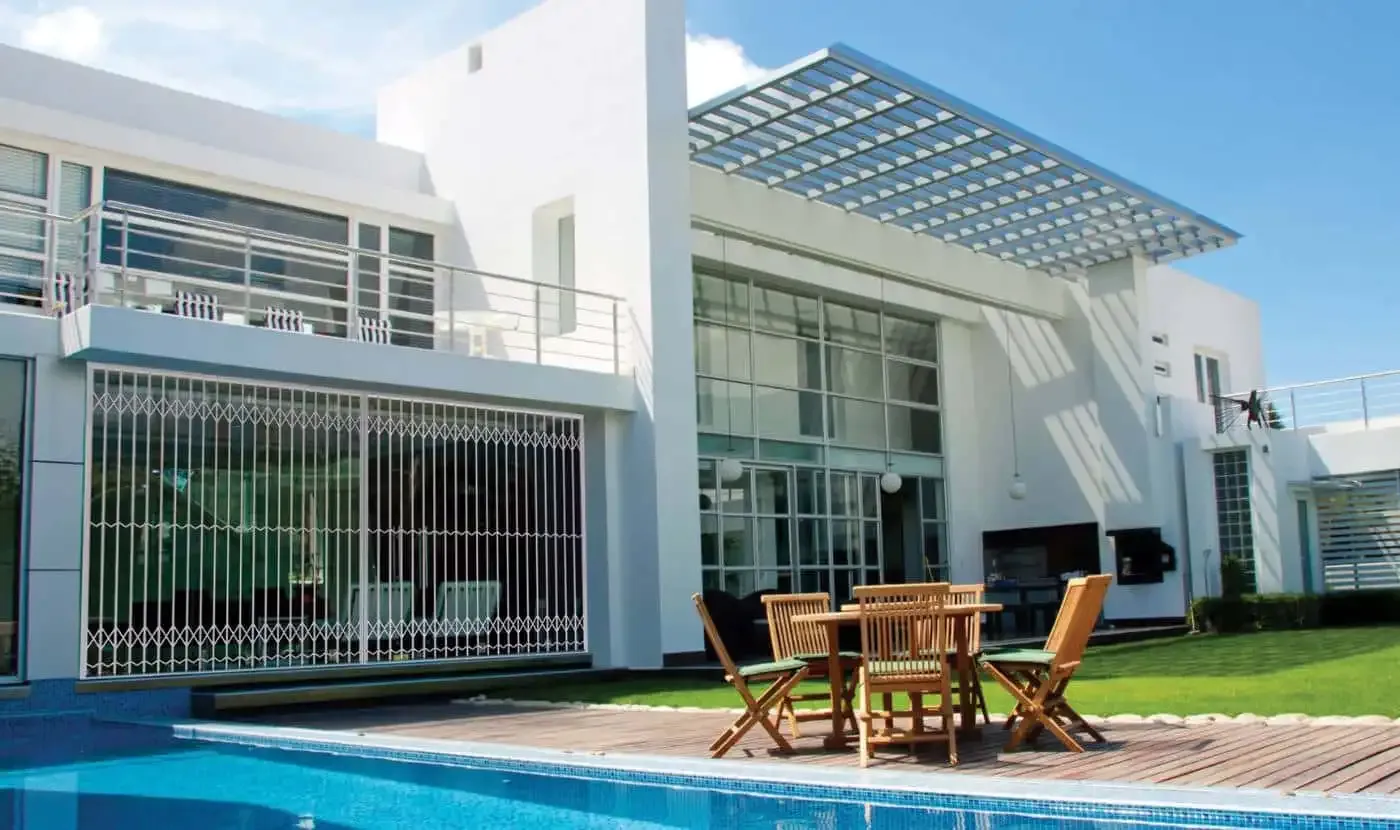

DX-222
The most secure gate in the range. It carries four sets of flights, two of them high-security 5mm zig-zags and two standard diamond crosses, on 19mm single steel uprights, and it locks with two star-key hook locks. Five-year guarantee.
Security Gates
Trellis Security Gates
Retractable steel gates that fold aside to open the doorway, then lock across it the moment you want it secured.
A trellis security gate is a retractable steel barrier that concertinas into a narrow stack against the wall, so the opening stays usable when the gate is open. You will also hear these called concertina gates or sliding security gates. DEFENDoor® makes four models, each tailored to your exact opening.
What separates the four models is how much steel stands between an intruder and the opening. Most run on 19mm single steel uprights, and the entry-level DX-215 steps down to 16mm. The flights are riveted at every join, and a powder-coated steel bottom track runs along the base to reinforce the whole gate.
The single upright is the part that does the security work. Two bars joined down their length leave a seam a crowbar can work into, and one solid bar has none.
- Models to choose from
- 4
- Powder-coated colours
- 6
- Guarantee on most models
- 5 years
The range
Four custom models
Every model is custom-built to the measured opening, runs on single steel uprights, and locks with a star-key hook lock. What sets them apart is the amount of steel reinforcement in the gate and how many locks hold it shut.
-

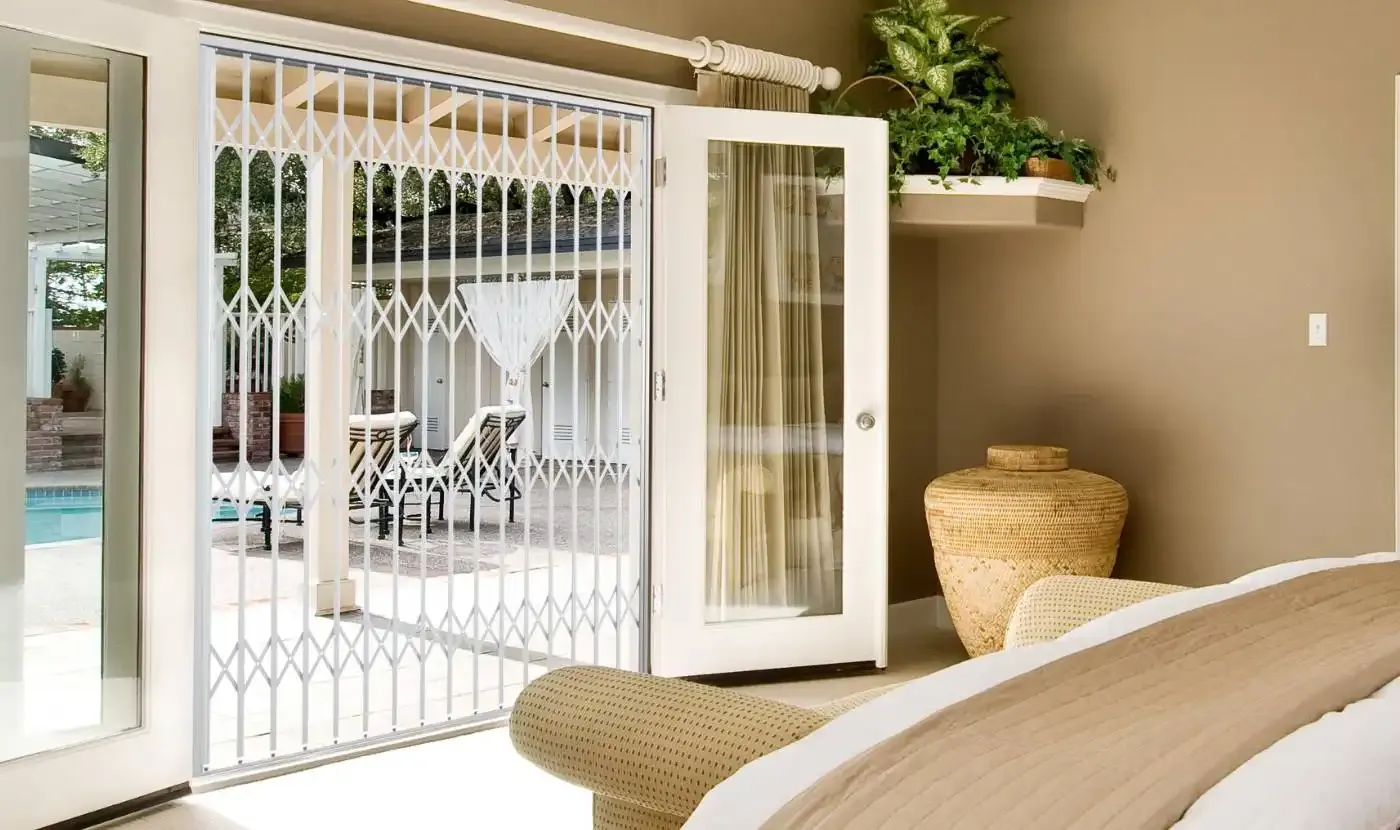

DX-420
Four sets of diamond-cross flights on 19mm single steel uprights, locked by two star-key hook locks. It is all steel, with no plastic or nylon structural parts. Five-year guarantee.

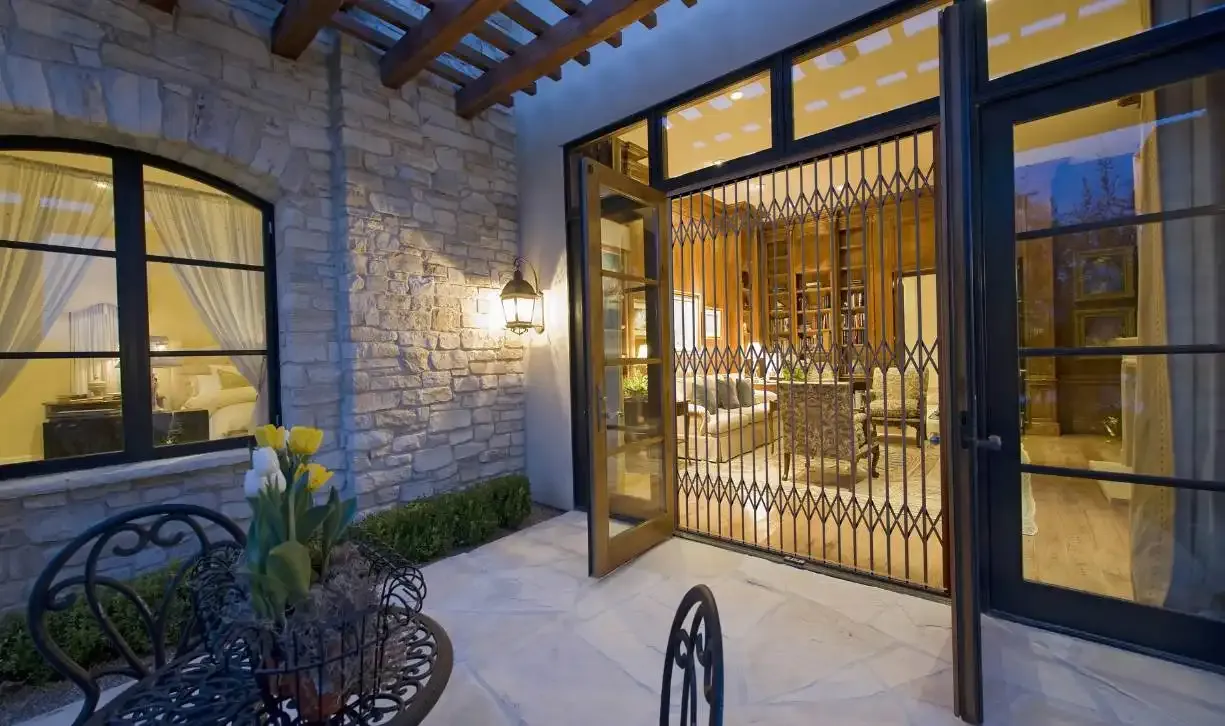

DX-310
Three sets of diamond-cross flights on 19mm single steel uprights, with a single star-key hook lock. It shares the same all-steel construction and five-year guarantee.

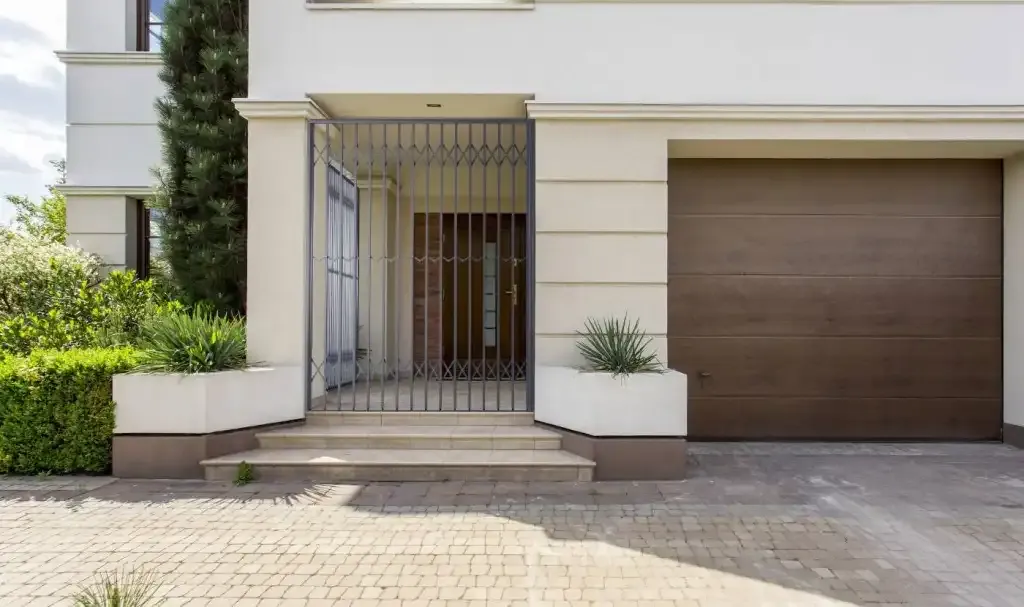

DX-215
The entry point to the range. It has two sets of diamond crosses plus a half-flight set on a 16mm single steel bar, with one star-key hook lock. Its nylon 6 bottom bolts spin in the track, which makes them hard to cut. Two-year guarantee.
Models and specifications
All four models are custom-built and share the powder-coated steel bottom track. They differ in flight count, upright gauge, locking, and guarantee.
| Specification | DX-222 | DX-420 | DX-310 | DX-215 |
|---|---|---|---|---|
| Flights | 4 sets: 2 standard diamond crosses plus 2 high-security 5mm zig-zags | 4 sets of diamond crosses | 3 sets of diamond crosses | 2 sets of diamond crosses plus 1 half-flight set |
| Uprights | 19mm single steel | 19mm single steel | 19mm single steel | 16mm single steel bar |
| Construction | All steel, no plastic or nylon parts | All steel, no plastic or nylon parts | All steel, no plastic or nylon parts | Steel, with nylon 6 bottom bolts |
| Rivets | Stainless steel | Stainless steel | Stainless steel | SABS-approved aluminium |
| Bottom bolts | Solid steel encased in glass-filled nylon | Solid steel encased in glass-filled nylon | Solid steel encased in glass-filled nylon | Nylon 6 bolts that lock into the track and spin, which makes them very hard to cut |
| Locking | 2 high-security star-key hook locks | 2 high-security star-key hook locks | Single high-security star-key hook lock | Single high-security star-key hook lock |
| Guarantee | 5 years | 5 years | 5 years | 2 years |
DX-222
- Flights
- 4 sets: 2 standard diamond crosses plus 2 high-security 5mm zig-zags
- Uprights
- 19mm single steel
- Construction
- All steel, no plastic or nylon parts
- Rivets
- Stainless steel
- Bottom bolts
- Solid steel encased in glass-filled nylon
- Locking
- 2 high-security star-key hook locks
- Guarantee
- 5 years
DX-420
- Flights
- 4 sets of diamond crosses
- Uprights
- 19mm single steel
- Construction
- All steel, no plastic or nylon parts
- Rivets
- Stainless steel
- Bottom bolts
- Solid steel encased in glass-filled nylon
- Locking
- 2 high-security star-key hook locks
- Guarantee
- 5 years
DX-310
- Flights
- 3 sets of diamond crosses
- Uprights
- 19mm single steel
- Construction
- All steel, no plastic or nylon parts
- Rivets
- Stainless steel
- Bottom bolts
- Solid steel encased in glass-filled nylon
- Locking
- Single high-security star-key hook lock
- Guarantee
- 5 years
DX-215
- Flights
- 2 sets of diamond crosses plus 1 half-flight set
- Uprights
- 16mm single steel bar
- Construction
- Steel, with nylon 6 bottom bolts
- Rivets
- SABS-approved aluminium
- Bottom bolts
- Nylon 6 bolts that lock into the track and spin, which makes them very hard to cut
- Locking
- Single high-security star-key hook lock
- Guarantee
- 2 years
Colours
Every gate is powder-coated in one of six standard colours, and the steel bottom track is finished to match.
- Silver
- Chocolate Brown
- White
- Bronze
- Anthracite Grey
- Black
Custom colours available on request.
Colours shown here are a guide. Powder coating looks different in daylight than on a screen, so ask for a physical sample before you decide.
- Durable
- Timeless
- Beautifully finished
- Built to protect
Built to resist the way gates actually get attacked
-
All-steel, no plastic
The DX-222, DX-420, and DX-310 use no plastic or nylon structural parts. Their bottom bolts are solid steel encased in glass-filled nylon, so they run more quietly while the steel core carries the load.
-
19mm single uprights
One continuous bar per upright, so there is no seam for a crowbar to separate. The DX-215 uses a 16mm single steel bar on the same principle.
-
High-security star-key locks
Star-key hook locks resist picking and snapping. Two can be fitted to a single gate, which the DX-222 and DX-420 carry as standard.
-
Stainless-steel rivets
On the DX-310, DX-420, and DX-222 the rivets are stainless steel, so the joints that hold the flights together resist corrosion for the life of the gate. The entry-level DX-215 uses SABS-approved aluminium rivets.
-
Custom-built to the opening
Every gate is built to the exact measured opening, so it fits the jamb cleanly with nothing to pack out at the edges.
-
Payment terms available
Spread the cost over up to 24 months with FeverTree, so a full-house fitting does not have to happen one doorway at a time.
Gallery

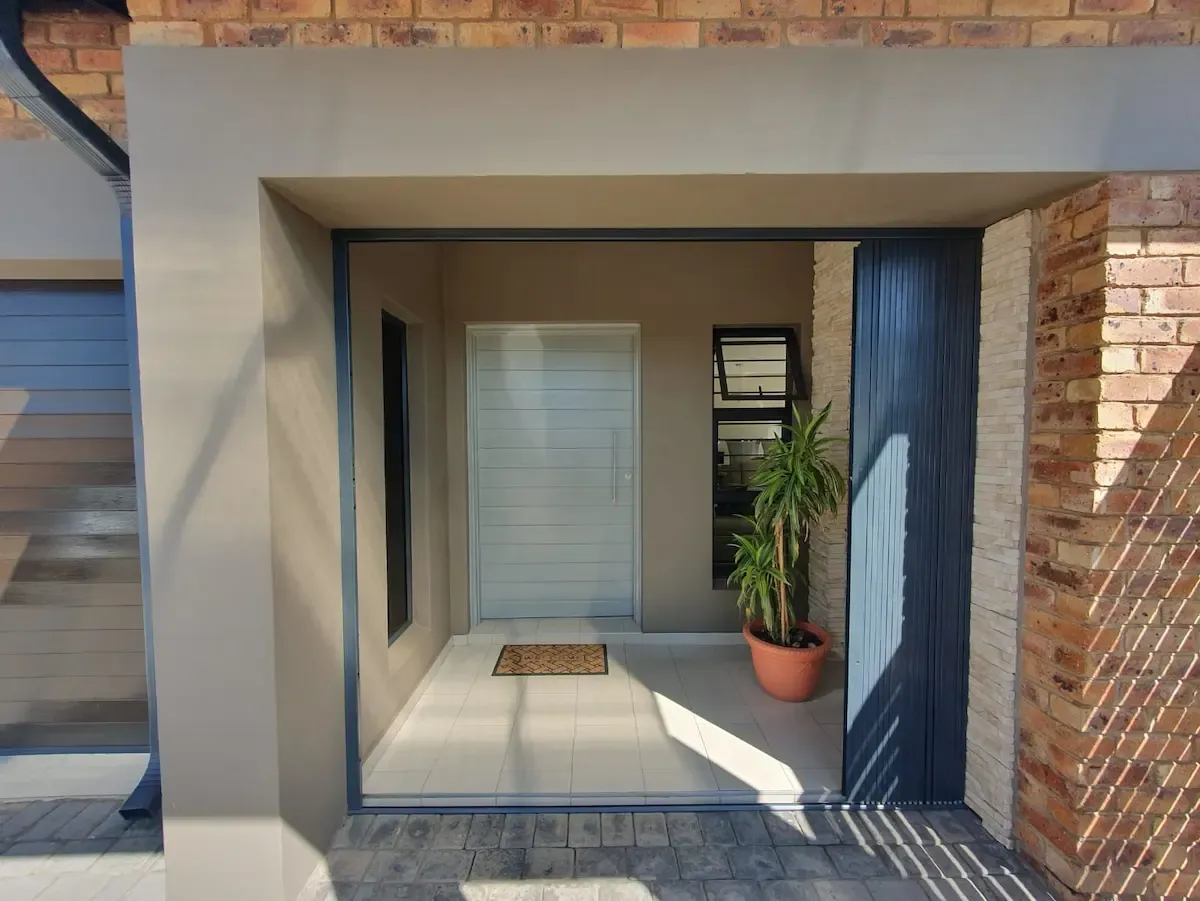

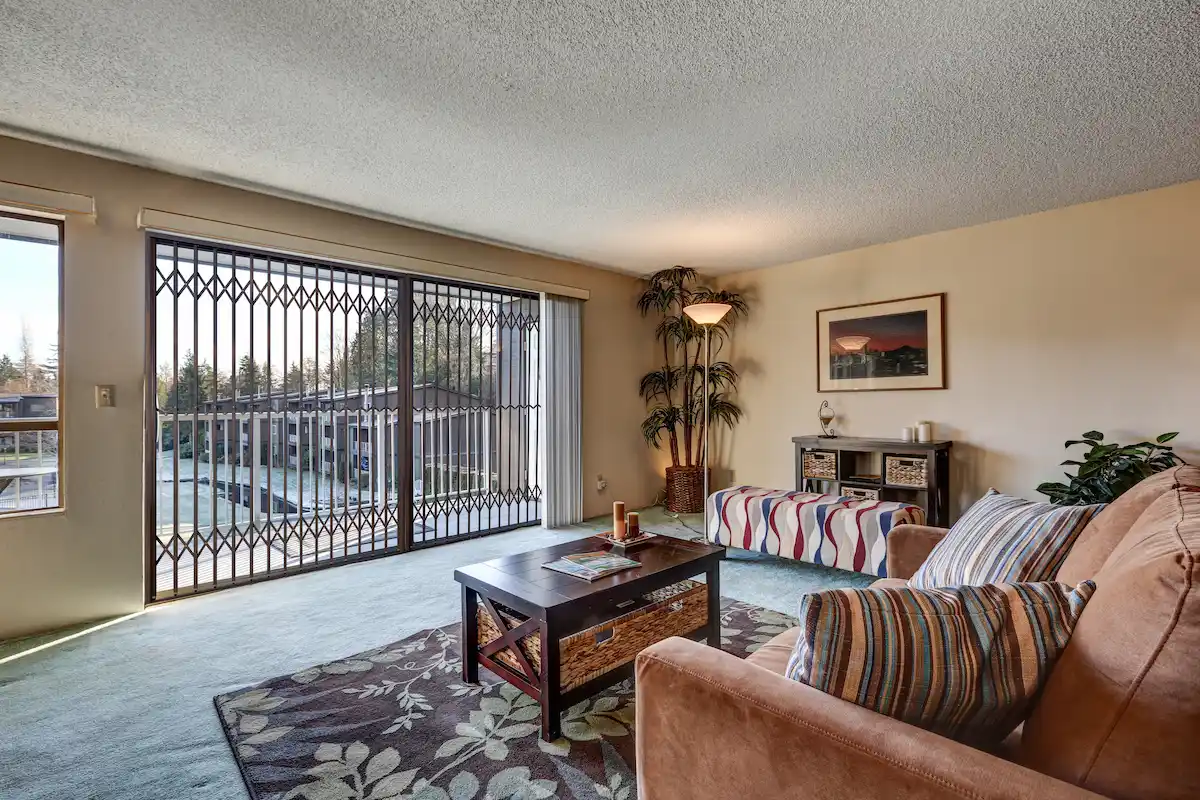

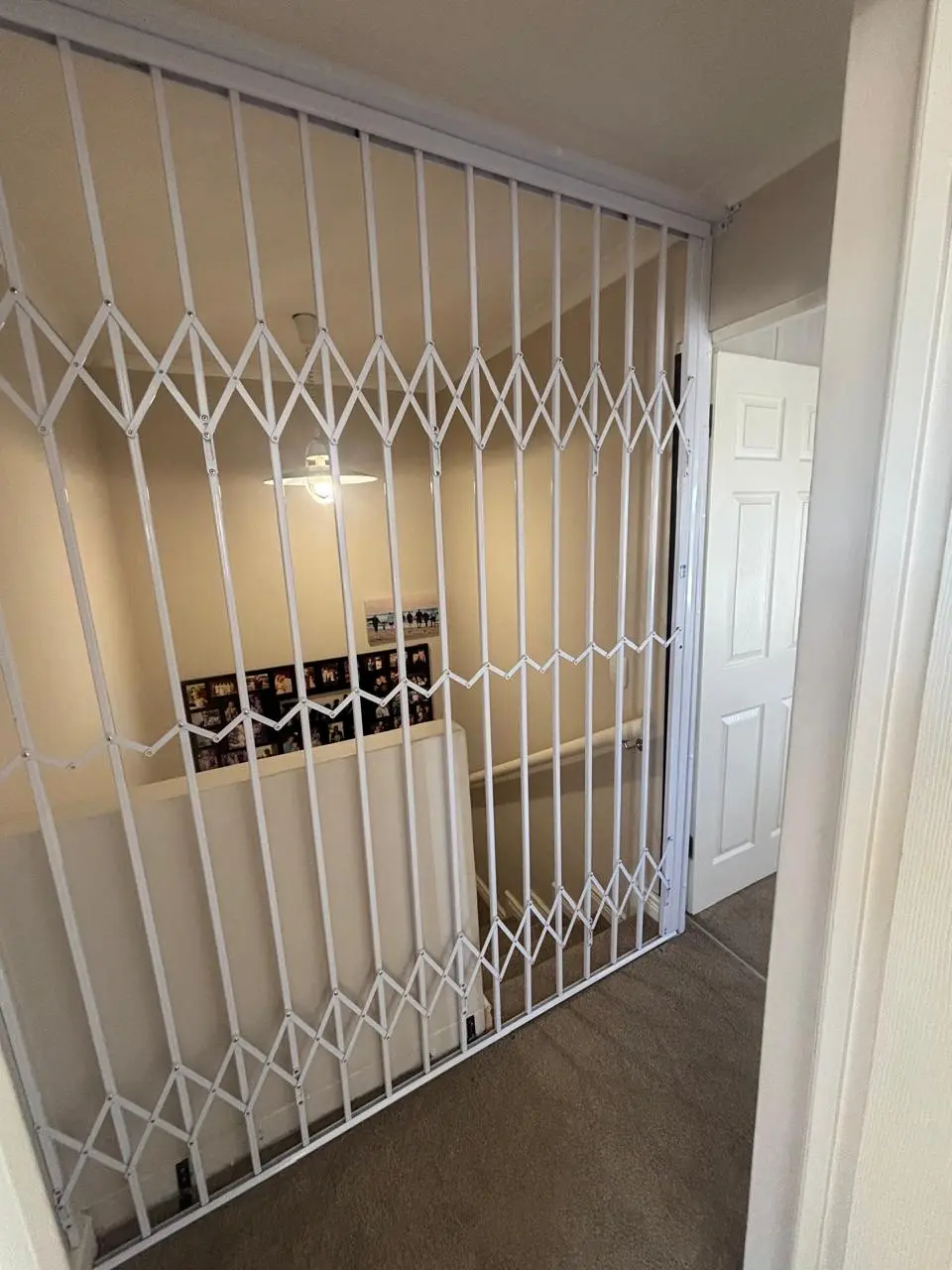

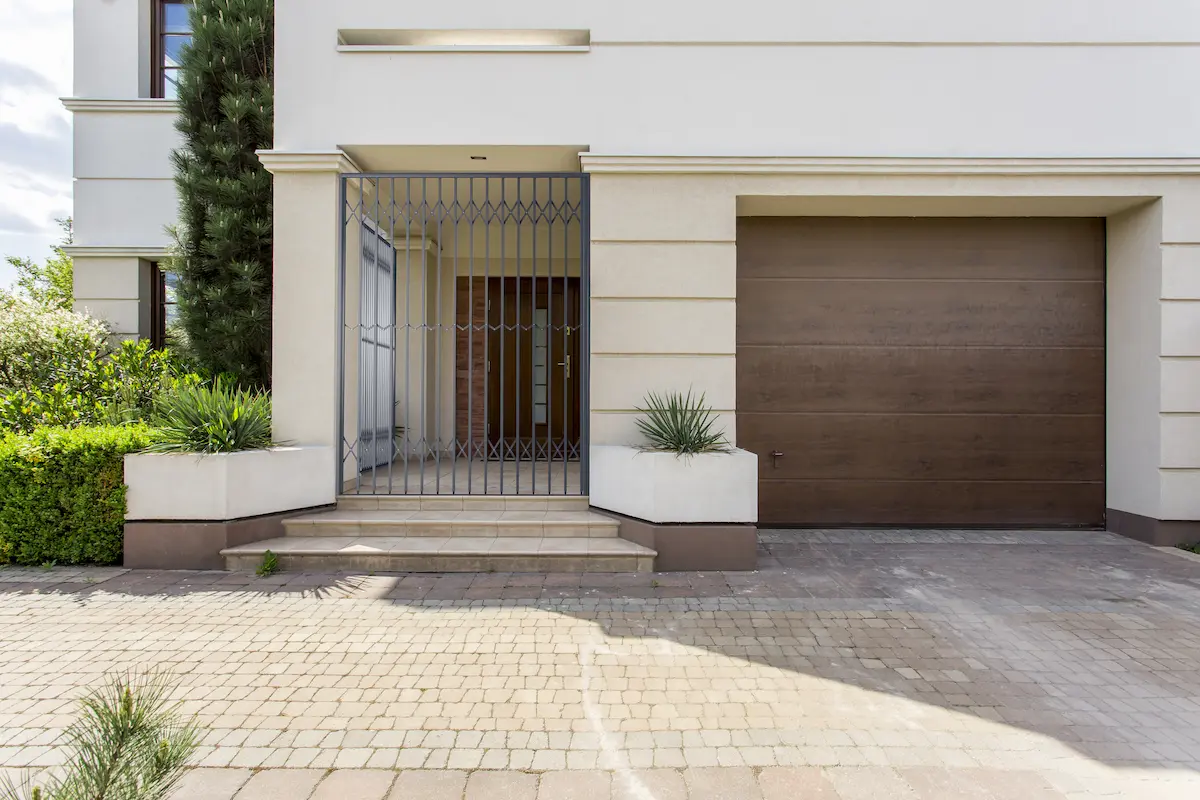

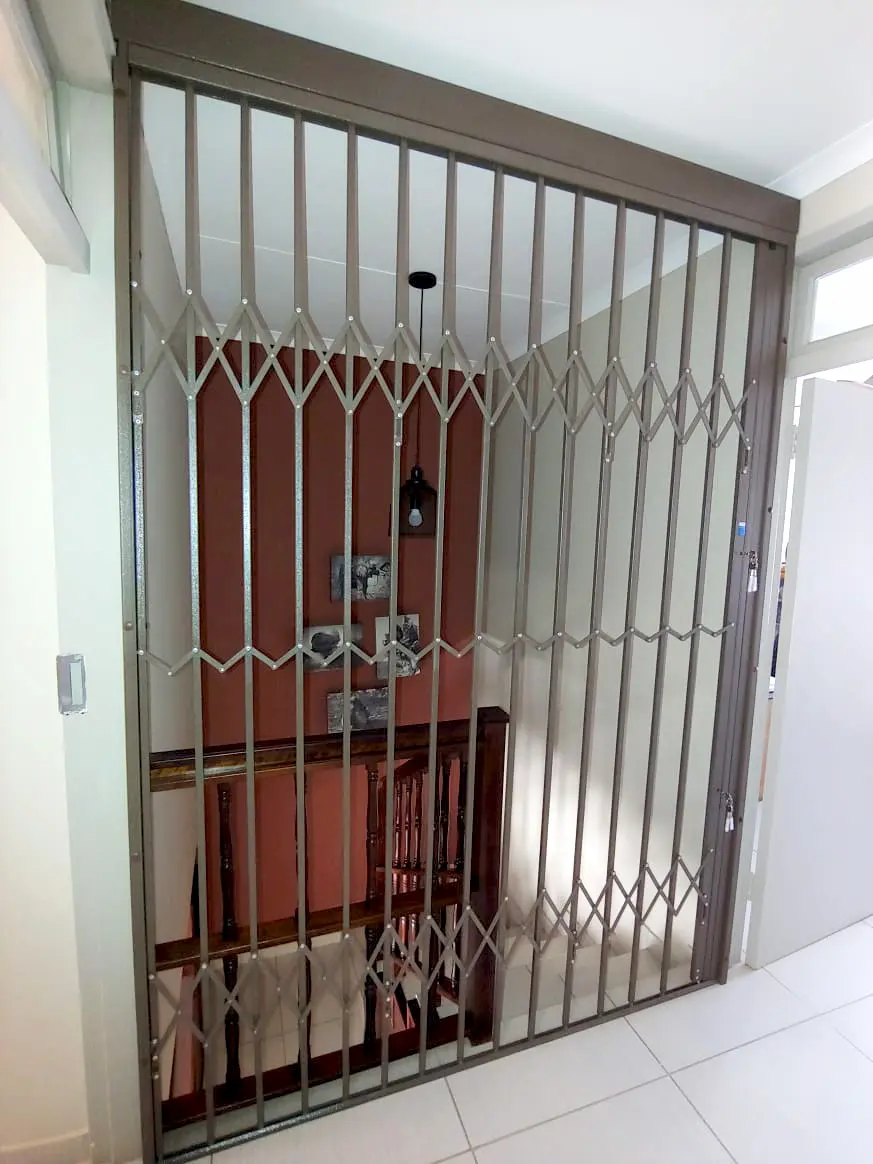

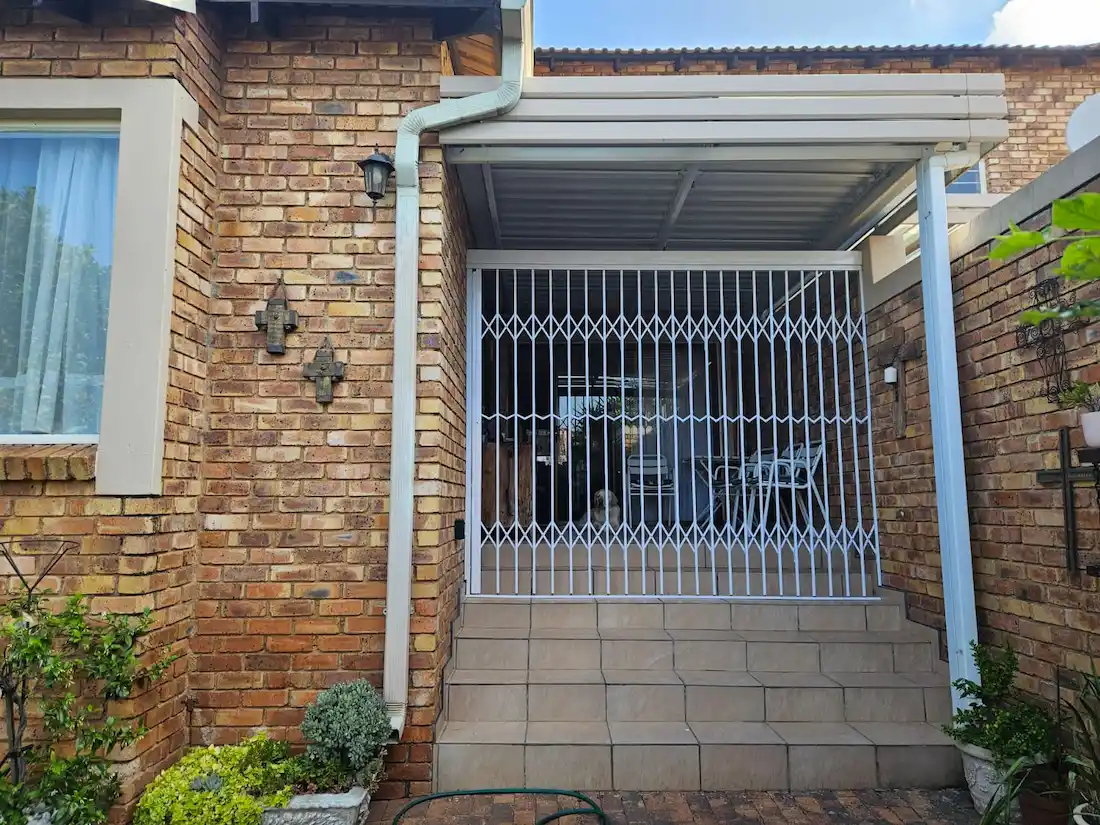

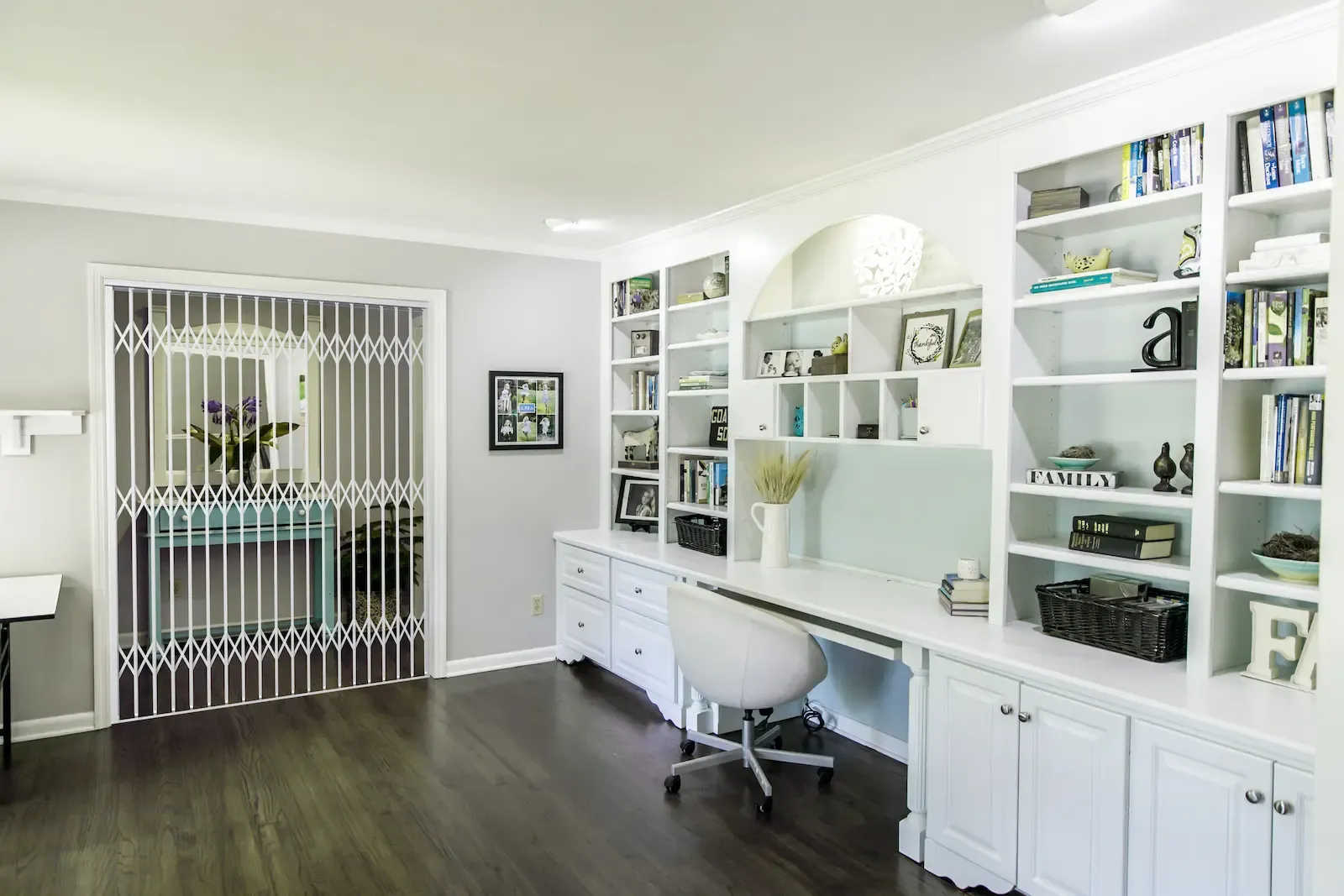

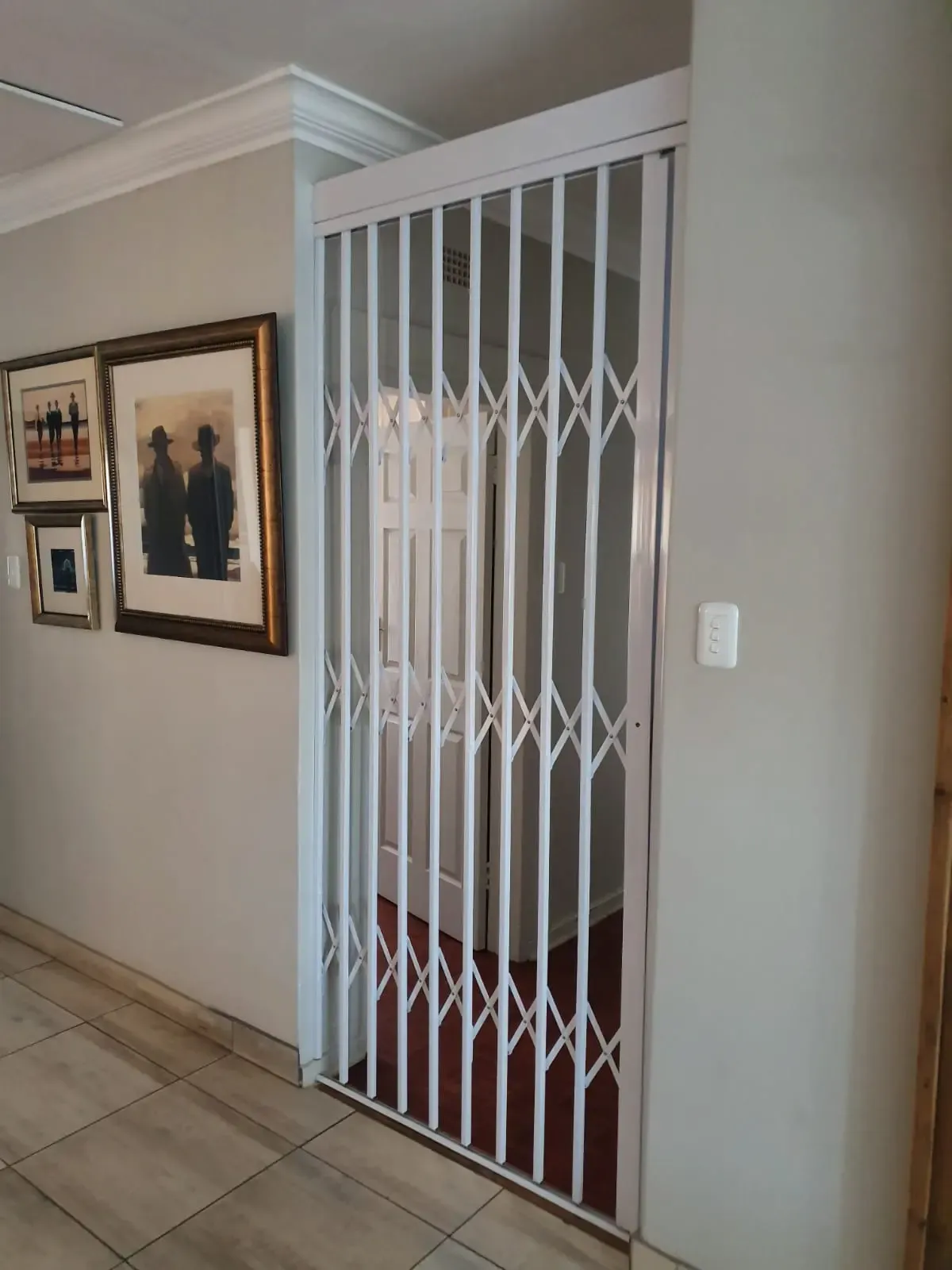

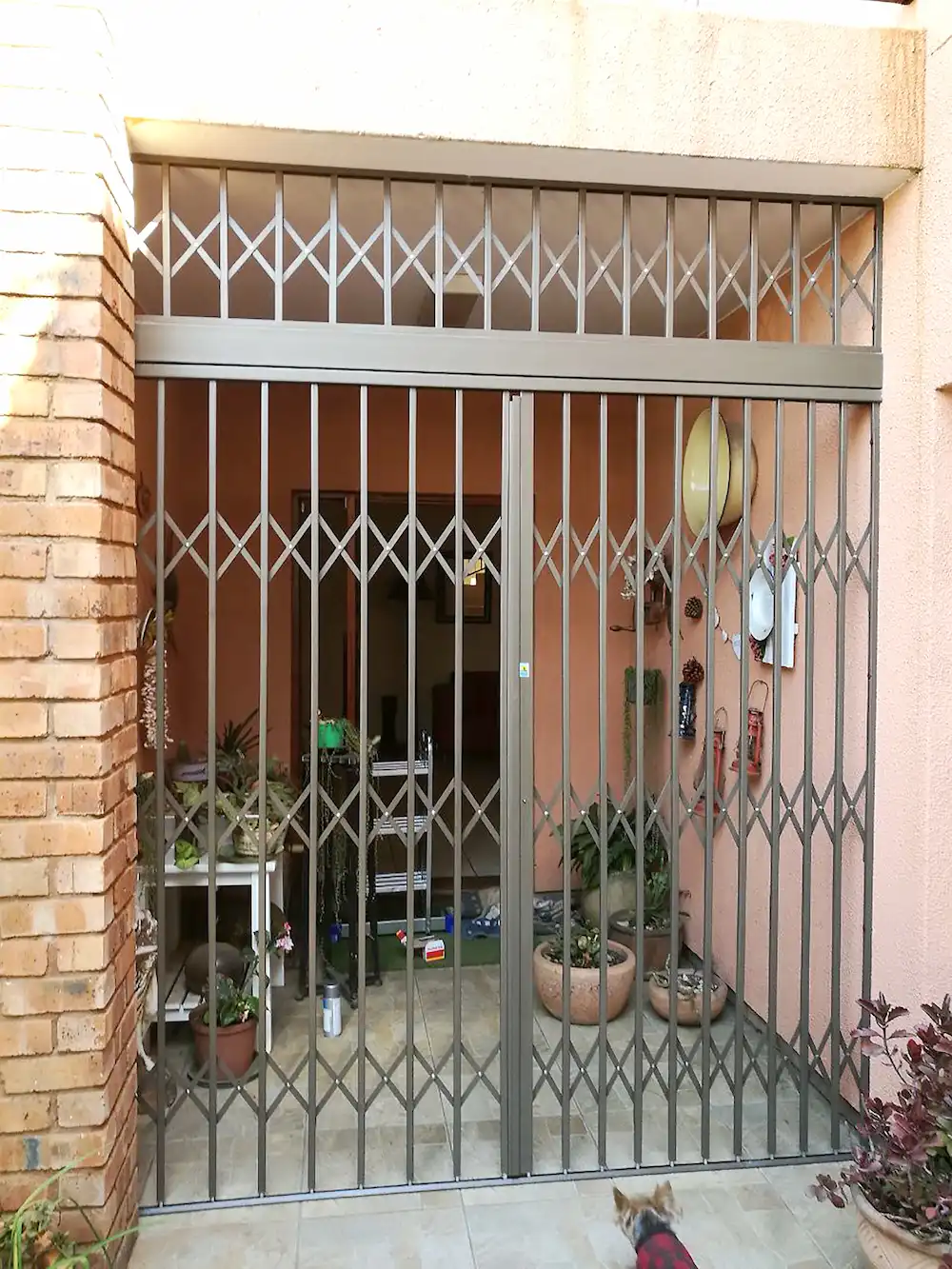

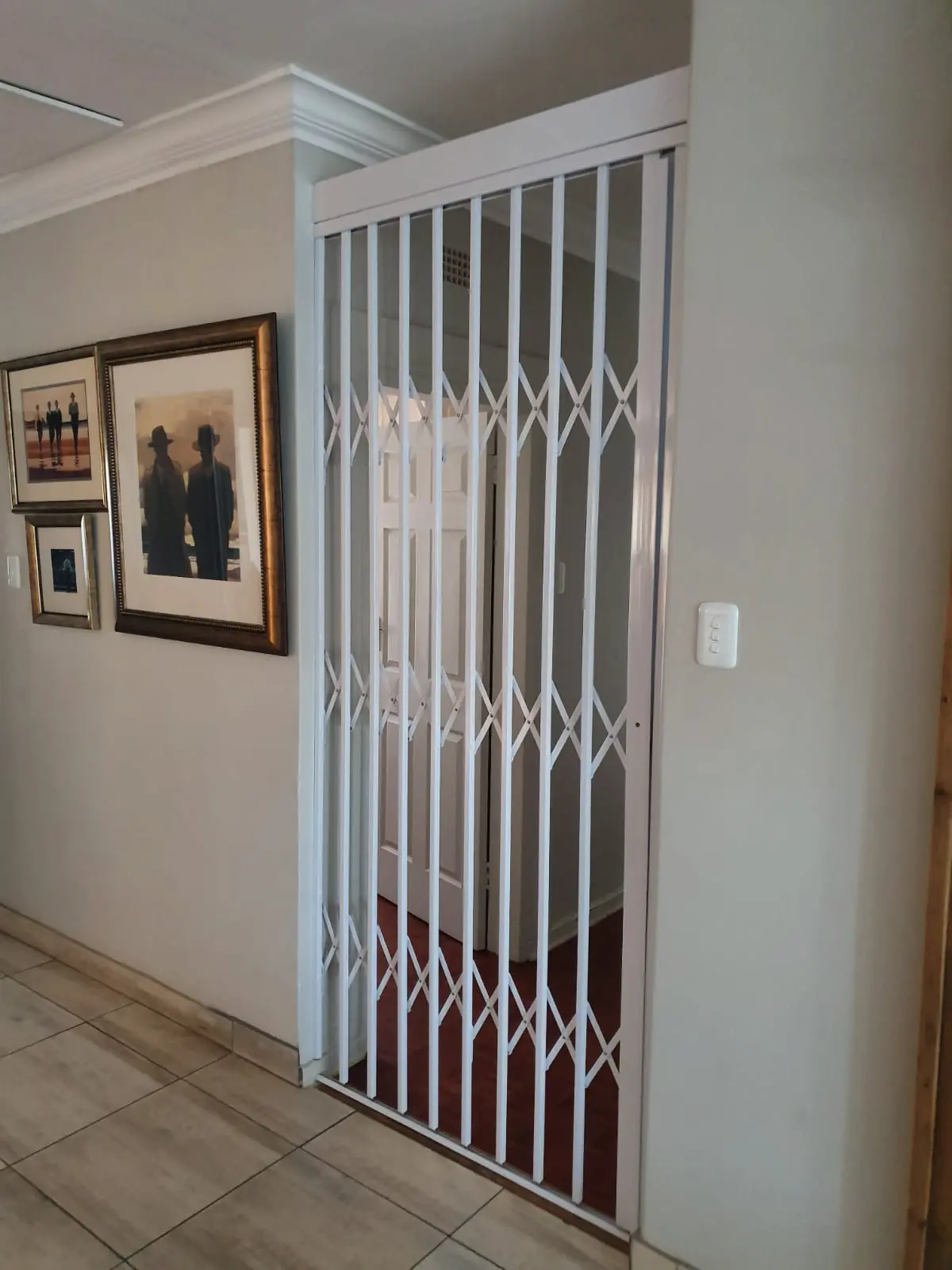

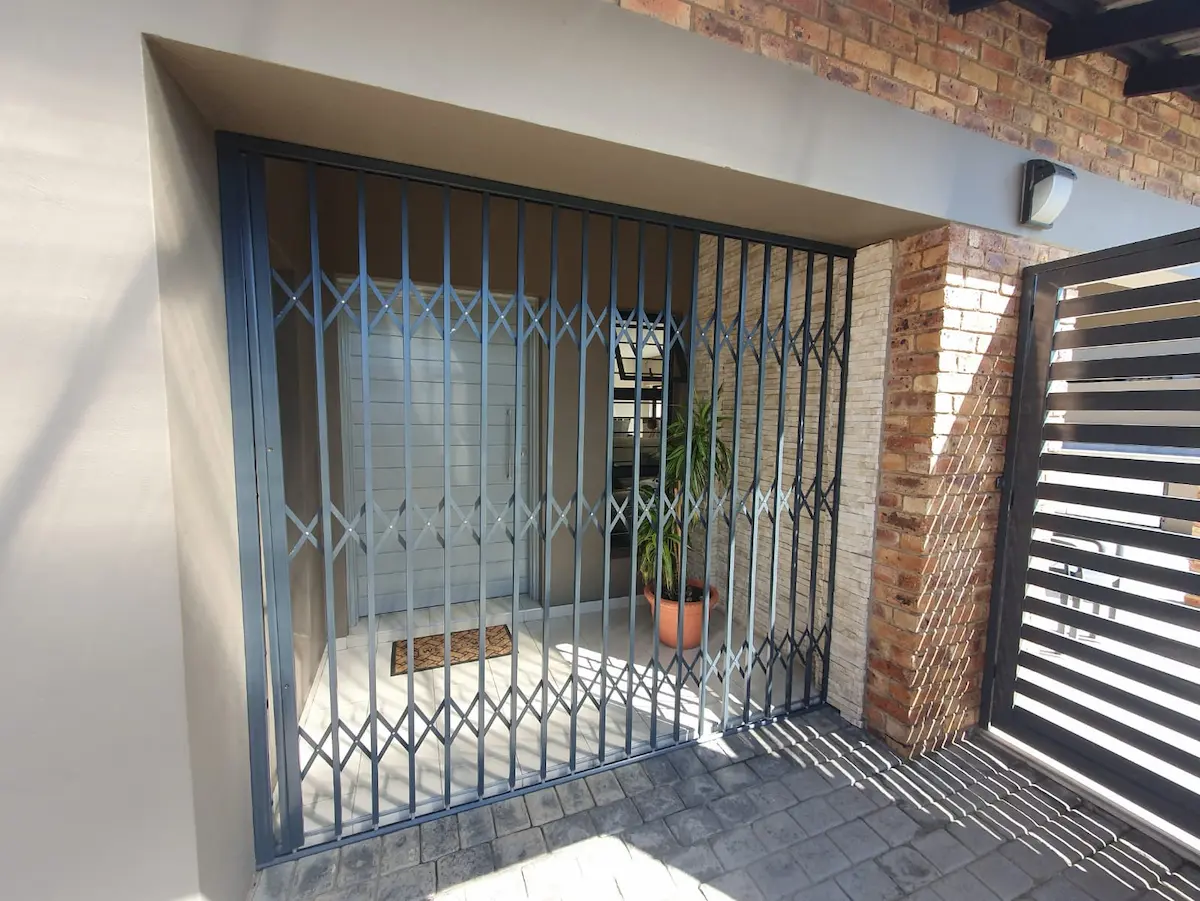

Installations across residential and commercial openings.
Frequently asked questions
What colours are trellis security gates available in?
Trellis security gates come in six standard powder-coated colours: White, Black, Anthracite Grey, Silver, Bronze, and Chocolate Brown. Custom colours are available on request.
Which trellis model is the most secure?
The DX-222 is the most secure trellis gate in the range. It carries four sets of flights, two of them high-security 5mm zig-zags and two standard diamond crosses, and it takes two star-key hook locks.
Do the gates contain plastic or nylon parts?
The DX-222, DX-420, and DX-310 use no plastic or nylon structural parts. Their bottom bolts are solid steel encased in glass-filled nylon, so they run more quietly while the steel core carries the load. The entry-level DX-215 uses nylon 6 bottom bolts that lock into the track and spin, which makes them very hard to cut.
Are trellis gates made to fit my opening?
Yes. Every trellis gate is built to the exact size of your opening, so it fits the jamb cleanly with no gaps to pack out. We measure the opening at the free on-site assessment.
How long is the guarantee on a trellis gate?
Trellis gate guarantees run five years on the DX-222, DX-420, and DX-310, and two years on the entry-level DX-215.
Can I pay a trellis gate off over time?
Yes. You can pay a trellis gate off over a term of up to 24 months through our finance partner, FeverTree. The finance page sets out the current options and who qualifies.
Get a quote for trellis security gates
Tell us about the opening, and we will come out, measure, and quote. The assessment is free, nationwide.
